Basic Settings

Setting Default Description
Scrolling Direction Up Scrolling Direction
Scrolling Duration 90 Specify a time (in second) that the animation should complete one cycle.
Rotate X 20 Degrees Defines a 3D rotation of image grid along the X-axis
Background Color #484848 Specifies the background color to be used.
Overlay Show Optionally add a color overlay to a background image.
Overlay Color #484848 Specifies the overlay color to be used.
Overlay Gradient To Bottom Specifies the linear gradient of overlay.

Image Grid

Image Grid Settings

Setting Default Description
Image Width 320 Set a width (in pixel) of images in grid.
Image Height 200 Set a height (in pixel) of images in grid.
Image Crop Mode Resize then Crop Select a crop mode that will be used to create thumbnail images in grid from original images.
Image Opacity 0.8 Set opacity of images. A lower value makes the element more transparent.
Image Filter None Defines visual effects (like blur and saturation) to an images.
Blur (px) 5px Applies a blur effect to the image. A larger value will create more blur. If no value is specified, 0 is used.
Brightness (%) 200% Adjusts the brightness of the image.
0% will make the image completely black.
100% (1) is default and represents the original image.
Values over 100% will provide brighter results.
Contrast (%) 200% Adjusts the contrast of the image.
0% will make the image completely black.
100% (1) is default and represents the original image.
Values over 100% will provide results with less contrast.
Grayscale (%) 100% Converts the image to grayscale.
0% (0) is default and represents the original image.
100% will make the image completely gray (used for black and white images).
Note: Negative values are not allowed.
Hue-Rotate (deg) 90deg Applies a hue rotation on the image. The value defines the number of degrees around the color circle the image samples will be adjusted. 0deg is default, and represents the original image.
Note: Maximum value is 360deg.
Invert (%) 100% Inverts the samples in the image.
0% (0) is default and represents the original image.
100% will make the image completely inverted.
Note: Negative values are not allowed.
Saturate (%) 8 Saturates the image.
0% (0) will make the image completely un-saturated.
100% is default and represents the original image.
Values over 100% provides super-saturated results.
Note: Negative values are not allowed.
Sepia (%) 100% Converts the image to sepia.
0% (0) is default and represents the original image.
100% will make the image completely sepia.
Note: Negative values are not allowed.
Image 1 - 20 Select images to display in grid.

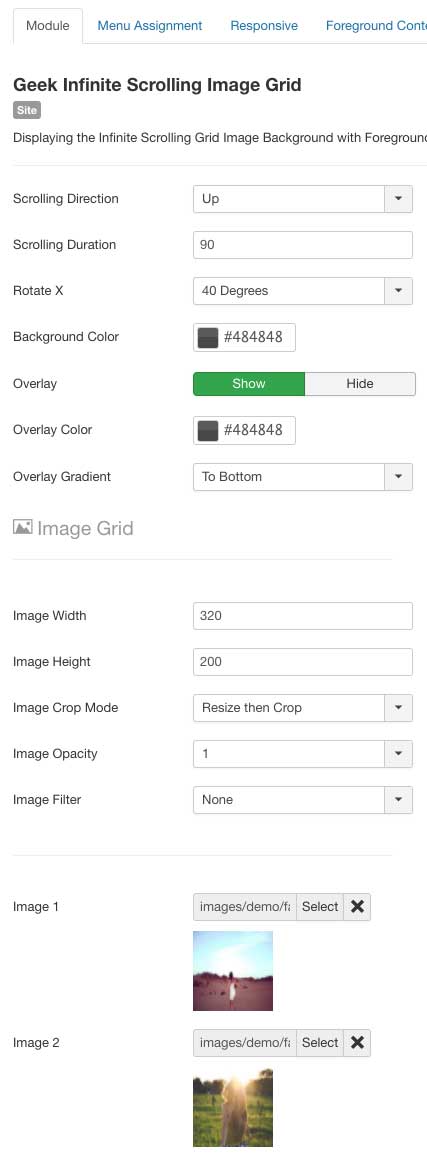

Basic settings

Responsive Settings

Set the height of module and define the perspective on each device types.

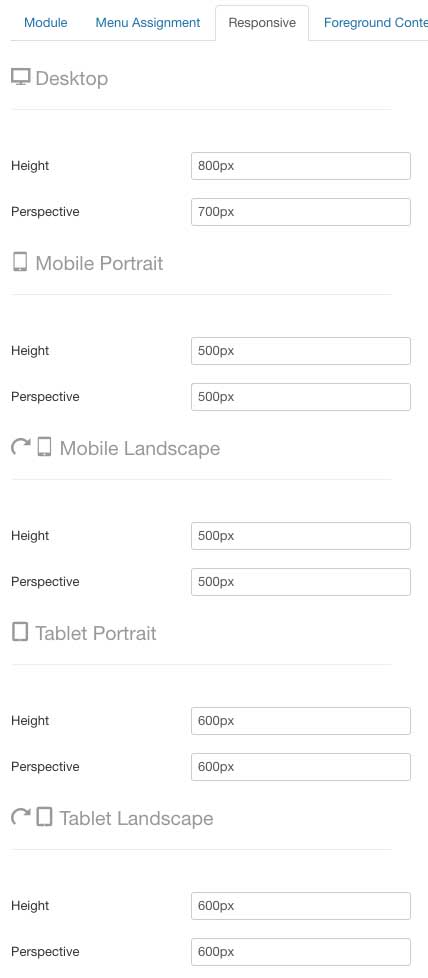

Responsive settings

Foreground Content

Setting Default Description
Prepare Content No Optionally prepare the content with the Joomla Content Plugins.
Text Color #FFFFFF Specifies the text color to be used.
Text Shadow Color #000000 Specifies the text shadow color to be used.
Content The content displays in front of background.

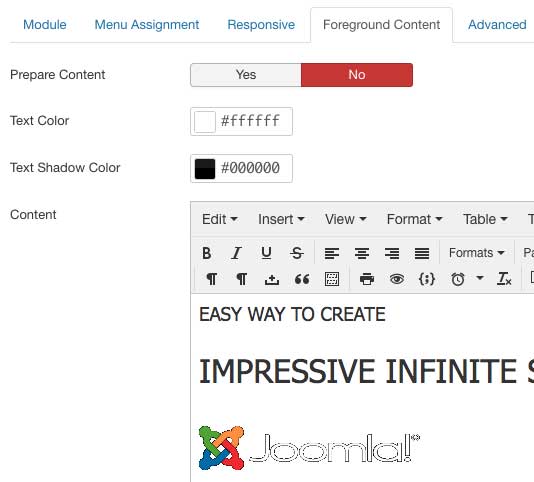

Set Foreground content
